Smart Extension to Your Solar Inverter

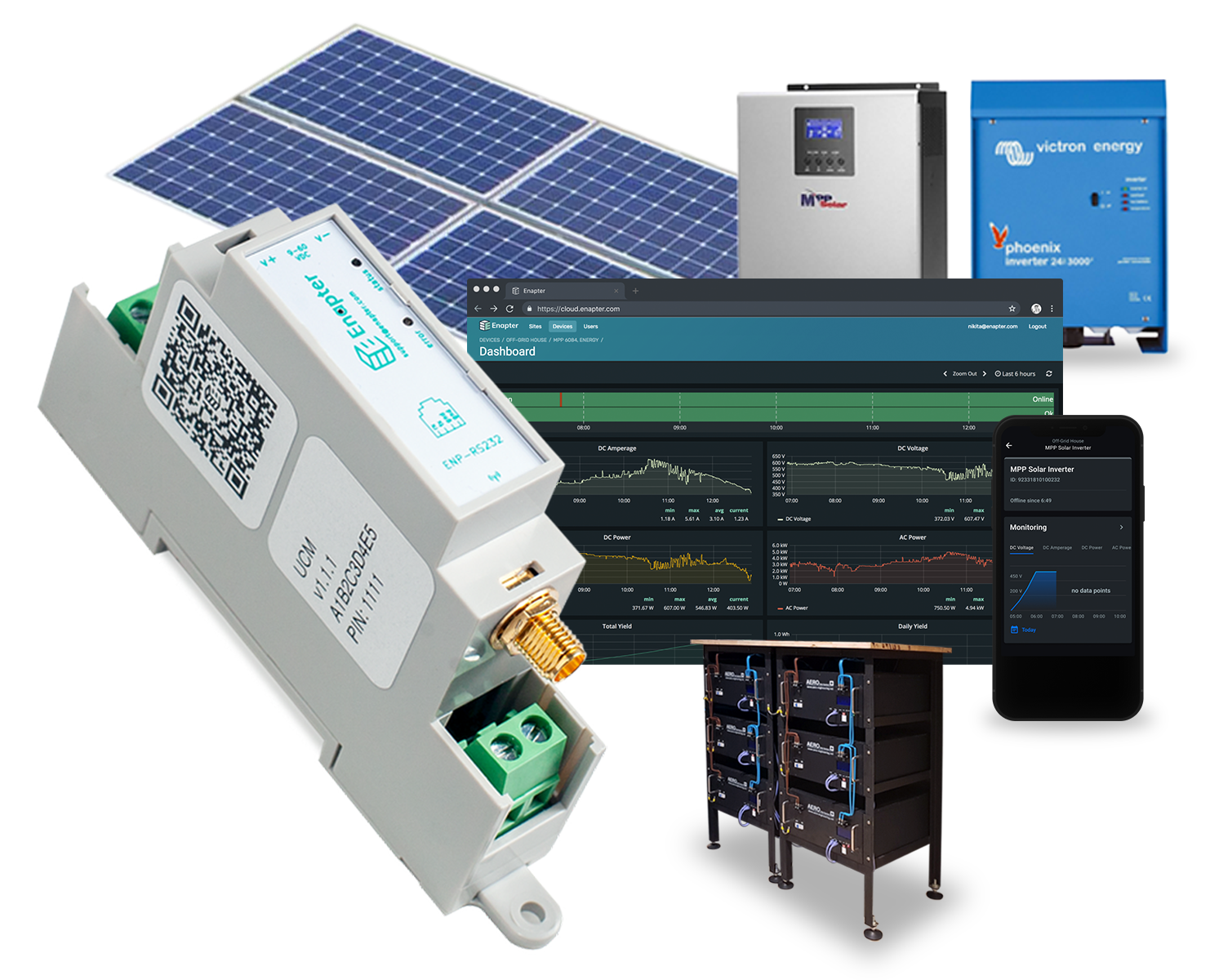

The Enapter ENP-RS232 Module can be added to your current renewable energy setup to complement your MPP Solar or Victron Energy inverter with the advanced management and monitoring features you are missing.



Ideal for:


How It Works

1. Enapter electrolysers come with a communication module (IoT, UCM) for remote monitoring and control via our apps. Modules are also available for solar panels, batteries – you name it.

2. Our Telemetry Platform collects and unifies data from all devices, controls them automatically or on demand, and stores the data on premise or in a private/public cloud.

3. The Enapter Cloud communicates with devices via the Intelligent Gateway, storing the data and providing real-time or on-demand data visualisation on customisable dashboards.

4. The EMS Toolkit also offers developer tools like Web IDE and Enapter Blueprints, as well as documentation to help system integrators and component manufacturers add our solutions to their products. Advanced users can access automation features enabling full control over devices, workflows and processes.

Monitoring and Management Features

With the Enapter ENP-RS232 Module you can manage and monitor your solar inverter remotely and conveniently via mobile and web applications.



Advanced Monitoring With Real Time Dashboard

Everything available in real time on mobile and web dashboards: battery and PV voltages and currents, battery state of charge and state of health, grid voltage and frequency, and more.*


Receive mobile push notifications about any errors or warnings happening to your inverter.



Store All Data in the Enapter Cloud for Free

Free and unlimited cloud-based data storage for your inverter telemetry is included. All historical and real-time data is available on the go with per-second precision.




Charger Management

Set time schedule or battery voltage thresholds to dynamically change priorities of battery charger source between Solar Only or Utility Grid modes - or switch manually using the mobile application at any time.

You do not need an extra computer to control and configure your inverter anymore.





Offline Mode

The module is autonomous – schedule and voltage threshold rules work without an Internet connection. For additional reliability it can be powered directly from 12/24/48 V DC battery.

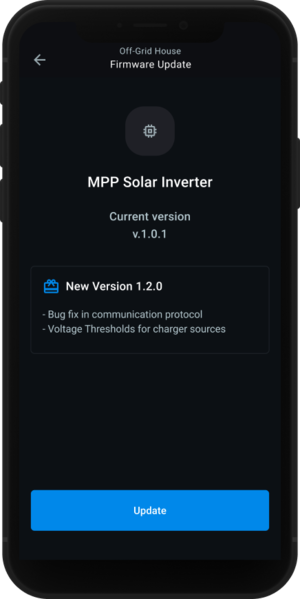

Seamless Firmware Updates Over Internet

Keep your inverter up-to-date without any effort. All necessary updates and releases are delivered to your module automatically. The history of updates is available in your mobile application.



Some features are subject to availability for specific solar inverter models.


Specifications

The Enapter ENP-RS232 Module supports most popular inverters with RS-232 port.
Easily install, configure, and manage your energy devices with an intuitive mobile app.

Module ENP-RS232
Operating Voltage9...60 V DC
Standardized Wire GaugeAWG 17 (1 sqmm)
Wireless CommunicationWi-Fi 2.4 GHz, Bluetooth 4.0 LE
Integrated Connection TypeRJ-10/4P4C
Antenna Connection TypeSMA-F (module) – SMA-M (antenna)
Local Signaling1 green LED (steady - correct work, blinking -
connecting), 1 red LED (module error)
Current Consumption50mA 12 V DC, max 300 mA
Mounting35 mm DIN rail acc to IEC 60715
Height / Depth / Width90.2x57.5x18.1 mm (3.55x2.26x0.71 inch)
Net Weight0,050 kg

Easy Setup With QR Code

Download the Android or iOS mobile application and scan a QR-code on your module to enable remote monitoring and worldwide access.




The Enapter App is available on the App Store and Google Play. Start tracking
your energy activity remotely from all over the world!


Enapter Enapter

Available versions:
ENP-RS232-MPP – MPP Solar RS-232, Watchpower Serial Protocol
ENP-RS232-VED – Victron Energy RS-232, VE. Direct Protocol

Couldn't find your inverter in the list? Tell us which model to integrate.
